Product Introduction

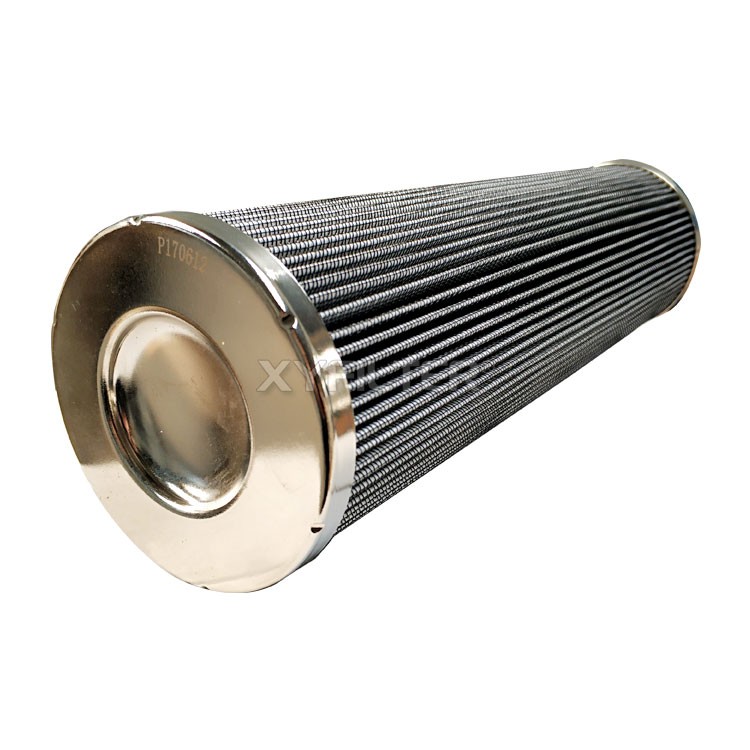

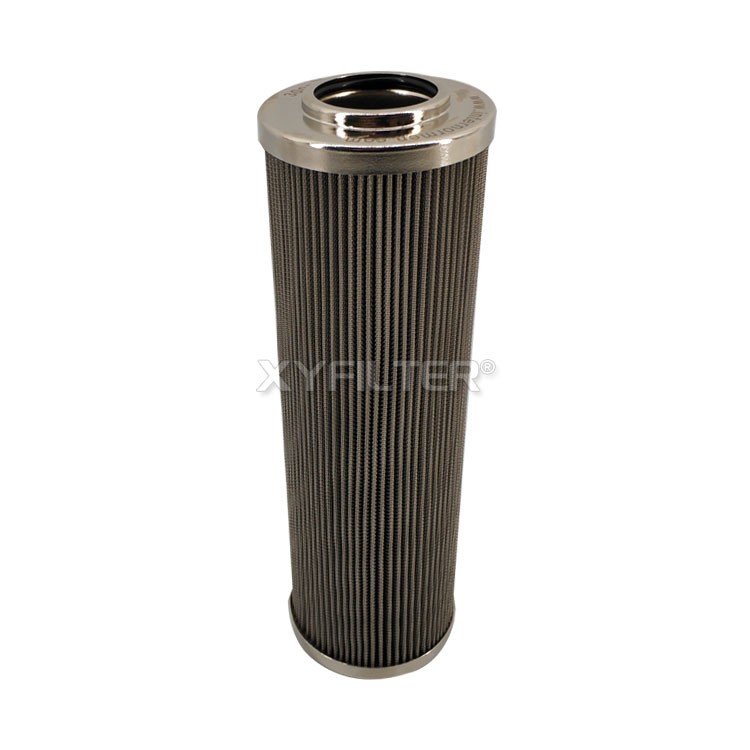

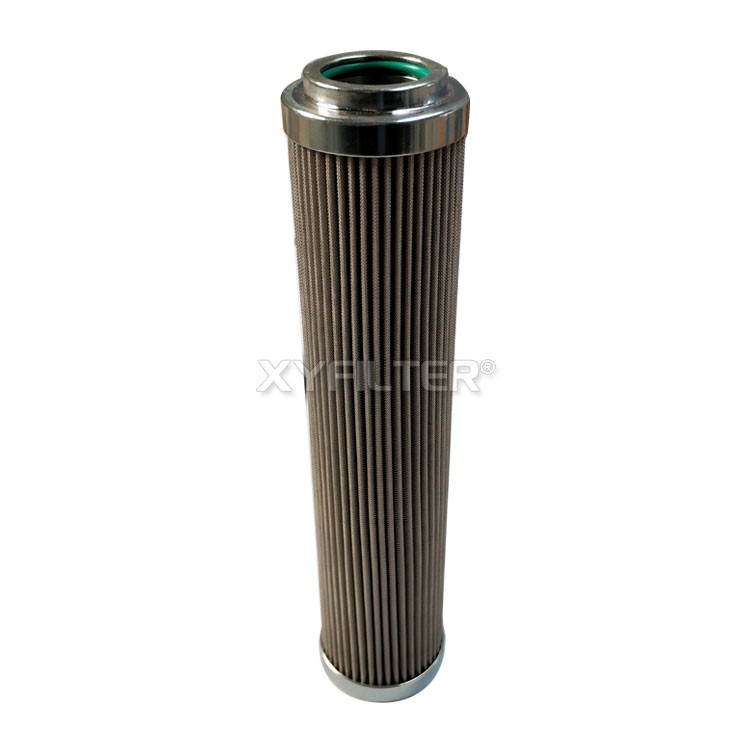

This replacement 01.NL400.80.G30EP pleated oil filter element matches the parameters and performance of the original Eaton filter element. It adopts outside‑in flow structure. Stainless steel pleated filter media delivers enlarged filtration area and high dirt‑holding capacity. Featuring reliable sealing and excellent pressure resistance, it effectively removes particulate contaminants from hydraulic oil and lubricating oil. Suitable for continuous‑running industrial conditions. Direct drop‑in replacement for original elements without equipment modification.

Core Parameters

Model No.: 01.NL400.80.G30EP Applicable Standard: DIN24550‑3 Filtration Rating: 80G Filter Media: Stainless Steel Woven Pleated Mesh Allowable Differential Pressure: 30 bar Seal Material: Nitrile Rubber (NBR) Structure: Single‑End Opening Pleated Filter Element

Product Features

• Pleated construction provides large filtration area, high dirt‑holding capacity and extended service life

• Corrosion‑resistant and wear‑proof stainless‑steel media for diverse industrial oil service conditions

• Stable performance under high differential pressure; resistant to deformation and rupture during operation

• Superior sealing performance to prevent oil leakage and filtration failure

• Exact dimensional match with original parts for quick installation and strong interchangeability

• Outstanding cost‑performance to cut operational and maintenance costs of filtration systems

Application Fields

Primarily applied for oil filtration in industrial oil stations, hydraulic systems and lubrication systems. Widely used in wind power, oil & gas equipment, construction machinery, generator sets, gearboxes and compressors. It maintains oil cleanliness, protects key hydraulic and transmission components and ensures stable equipment operation.
