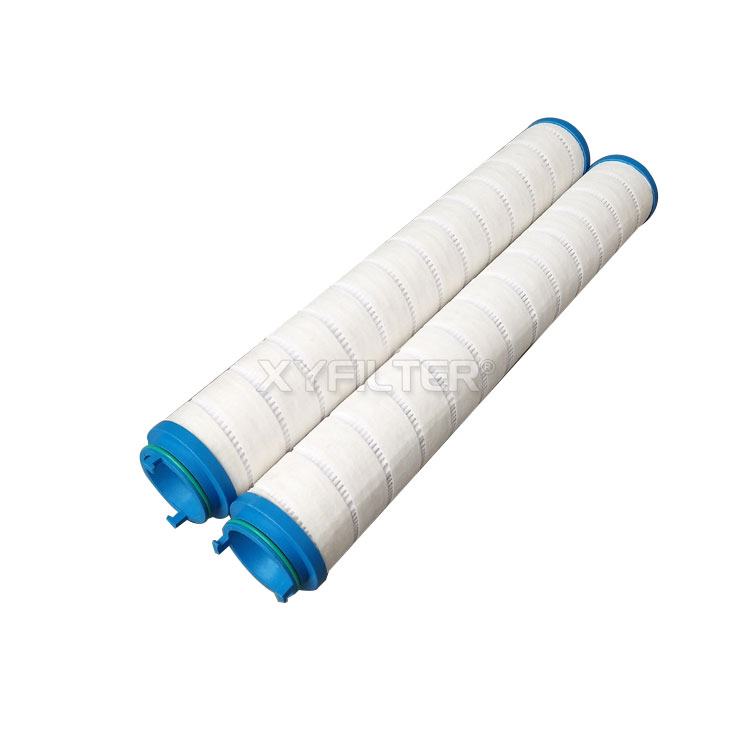

UE610AP40H Replacement PALL ReturnLine Filter Element, Glass Fiber Media

UE610AP40H domesticreplacement returnline filter element fits PALL UE610series returnline filters. Made of pleated glassfiber media, it is installed in returnline circuits of hydraulic systems to filter solid contaminants including metal wear debris, oil sludge and seal fragments. It maintains fluid cleanliness and protects precision components such as oil pumps, hydraulic valves and cylinders, reducing system wear and valvesticking failures. With dimensions fully compatible with OEM parts, it enables direct dropin replacement and is widely used in industrial hydraulic and lubrication equipment.

Product Advantages

1. Composite glassfiber media with depthfiltration structure delivers stable filtration accuracy and high dirtholding capacity for extended service intervals.

2. Builtin stainless steel support core provides high differentialpressure resistance against system flow impact; filter layers resist collapse and fiber shedding.

3. Matched oilresistant rubber seals ensure reliable sealing and prevent fluid bypass leakage for consistent filtration performance.

4. Outer dimensions and interfaces fully match original PALL UE610AN40H for direct replacement without filter housing modification.

5. Costeffective domesticalternative solution with fast leadtime, lowering sparepart procurement costs and suitable for complex site conditions across multiple industries.

Technical Specifications

· Model: UE610AP40H

· Replacement For: PALL UE610AN40H

· Filter Media: Glass fiber

· Filtration Accuracy: 40 μm

· Max. Allowable Differential Pressure: 0.42 MPa

· Operating Temperature: 25℃～100℃

· Applicable Media: Hydraulic oil, lubricating oil

· Construction: Pleated filter element with stainless steel inner core and sealing gasket

· Compatible Filter Housing: PALL UE610series returnline filter

Application Scope

Returnline filtration for hydraulic power units; hydraulic and lubrication equipment in power plants and steel mills; hydraulic systems of construction and mining machinery; complete hydraulic equipment for machine tools and injectionmolding machines; sparepart replacement for existing PALL UE610 returnline filters.
