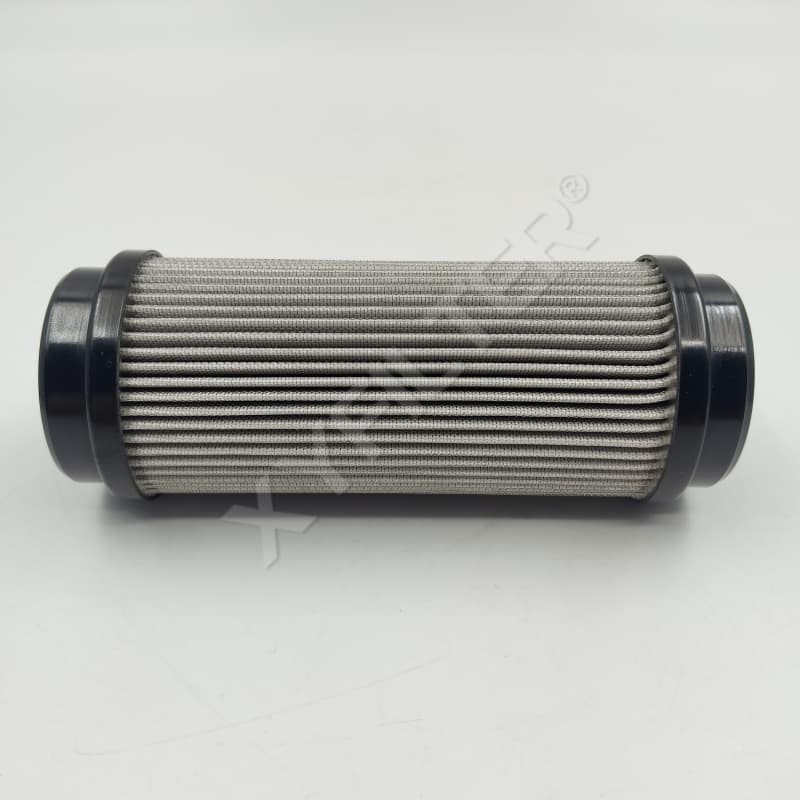

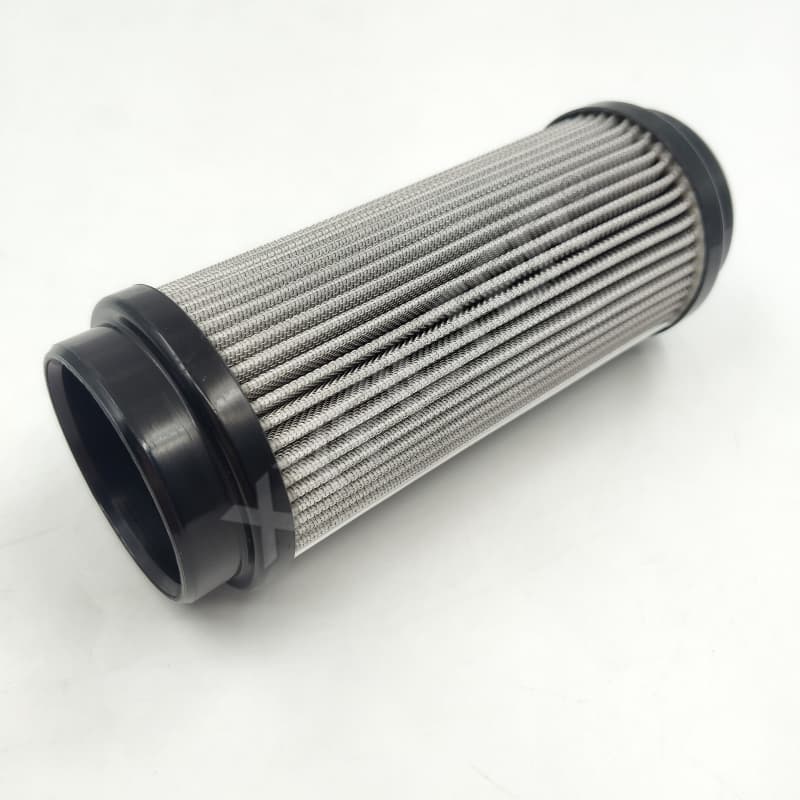

YL5-100 Aircraft Hydraulic & Fuel System Filter Element

Product Introduction

YL5-100 aviation pleated metal welded filter element fits YL5series filters. Made of stainlesssteel sintered felt and fabricated by gluefree welding. It filters aircraft hydraulic oil and aviation kerosene for severe onboard operating conditions. Cleanable and regenerable, direct replacement for equivalent imported aviation filter elements.

Specifications

 Filtration Rating: 5100μm (optional)

 Filter Media: Stainlesssteel fiber sintered felt

  Seal & Connection: Fullywelded joint, adhesivefree

 Fluid Media: Aircraft hydraulic oil, RP1/RP2/RP3 aviation kerosene

  Rated Flow Rate: 100L/min

  Nominal Pressure: 1.6MPa

  Max. Allowable Differential Pressure: 0.4MPa

 Operating Temperature: 55℃～125℃

 Core / End Caps: Stainless steel

Advantages

1. Stainlesssteel sintered felt, zero fiber shedding, oilresistant & corrosionresistant, excellent media compatibility

2. Pleated structure, high dirtholding capacity, low initial pressure drop, antiflowshock and antifatigue performance

3. Fullywelded gluefree process, no delamination or leakage, meets aviation standards

4. Cleanable & reusable, direct replacement with originalsize compatibility

5. Widetemperaturerange tolerance, vibrationresistant, suitable for severe onboard conditions

Application Fields

Suitable for aircraft onboard hydraulic and fuel pipelines, aviation test benches, military specialpurpose equipment and aviation ground refueling equipment, for specialfluid filtration applications with strict requirements against fiber shedding.
