GN03C Low Pressure Water Sample Filter for Power Plant Water & Steam Sampling Device

Product Introduction

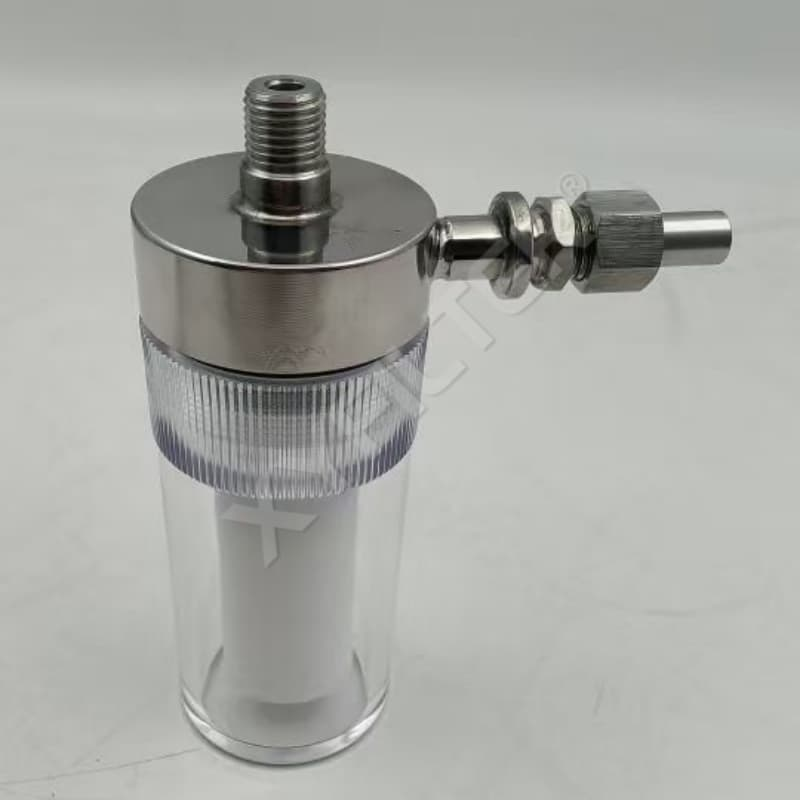

GN03C low pressure water sample filter is installed on water and steam sampling racks of power plants to remove suspended solids in water samples and protect electrodes of water quality analyzers. It features transparent organic glass cylinder and stainless steel end cap. The filter cartridge can be replaced by unscrewing the bottom cap. Compact structure and simple installation, suitable for low-pressure normal-temperature water sample conditions.

Technical Parameters

· Filtration Accuracy: 20μm

· Filter Material: PP yarn (ceramic / glass fiber optional)

· Seal: Heat-resistant rubber O-ring

· Medium: Instrument water sample for power plant

· Nominal Pressure: ≤0.8MPa

· Implementation Standard: Industry standard for power plant water and steam sampling devices

Product Advantages

1. Transparent cylinder for visual inspection of internal contamination

2. Simple cartridge replacement, fast disassembly and assembly

3. Stainless steel connection fittings with good corrosion resistance

4. Compact size, suitable for installation on sampling racks

Application Field

Widely used in water and steam sampling systems of thermal power plants for pre-filtering water samples before online water quality monitoring instruments.
