Product Introduction

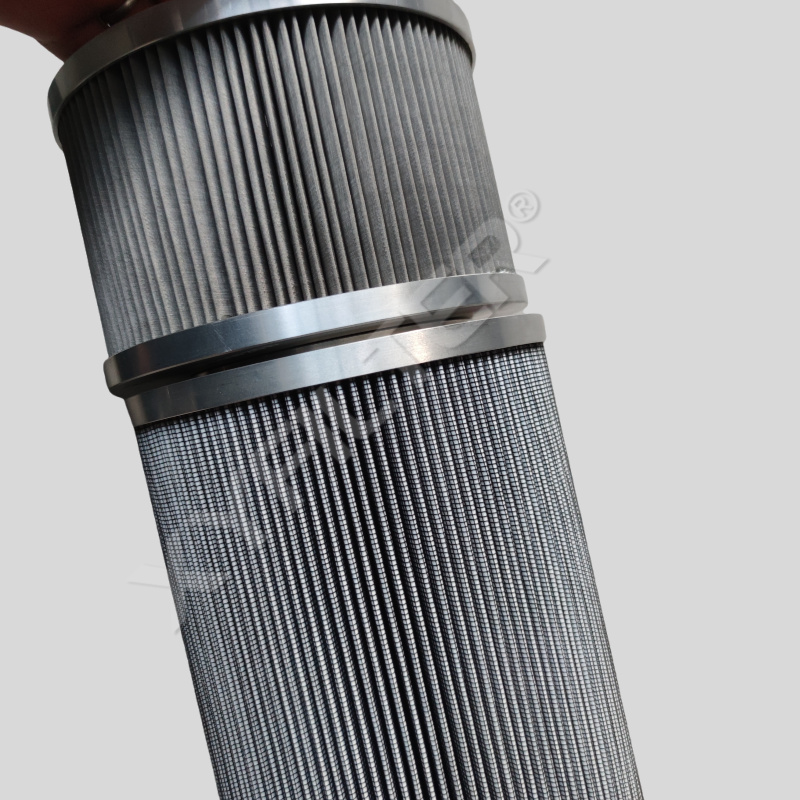

EET002-10F10W25B Two-section Stainless Steel Pleated Gearbox Filter Element adopts pleated stainless steel woven mesh media with a two-section combined structure for large filtration area. It is used for lubricating oil purification in gearboxes to capture metal wear particles and solid contaminants in oil. As a domestic replacement element, it is compatible with gearbox lubrication and filtration systems.

Product Advantages

✅ Integrated two-section structure effectively increases filtration area for higher dirt holding capacity

✅ Pleated stainless steel woven mesh, wear-resistant, cleanable and reusable with long service life

✅ Robust metal support frame, resistant to pressure difference and impact, suitable for alternating working conditions of gearboxes

✅ Stable sealing structure prevents medium bypass and ensures reliable filtration performance

✅ Dimensions matched with original parts, good interchangeability and easy assembly, disassembly and maintenance

Technical Parameters

· Filtration Accuracy: 10μm · Filter Media: Pleated stainless steel woven mesh with metal support frame · Seal: Oil-resistant nitrile rubber sealing ring · Applicable Media: Gearbox lubricating oil, hydraulic oil · Nominal Pressure: ≤1.6MPa · Implementation Standard: GB/T 14041, Hydraulic filter element performance test method

Application Scope

Suitable for lubrication systems of wind power and large industrial gearboxes, and also applicable to hydraulic stations of heavy machinery. It filters out metal particles and impurities in oil to protect precision transmission parts such as gears and bearings, ensuring stable equipment operation.
