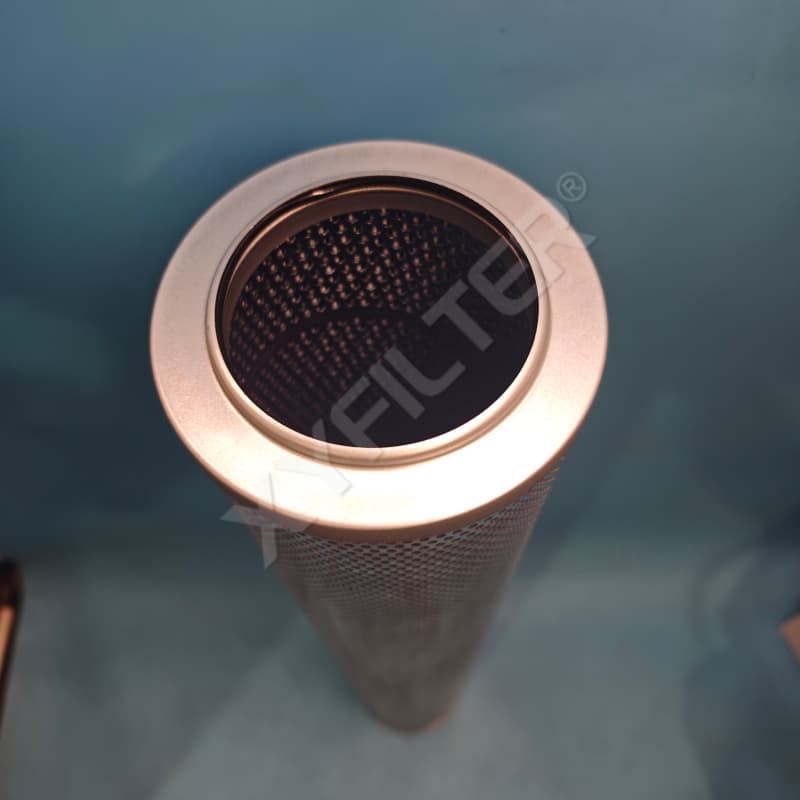

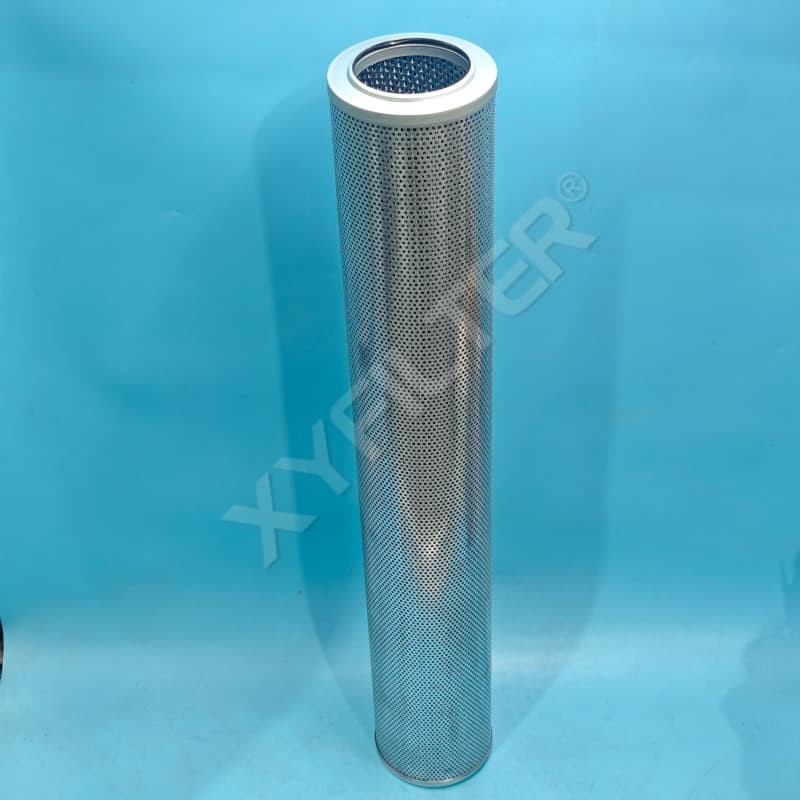

LXKF-100B*40D Steam Turbine Main Oil Tank Filter Element

Product Introduction

LXKF-100B*40D Steam Turbine Main Oil Tank Filter Element is specially designed for the lubrication system of steam turbine main oil tanks. Made of glass fiber media, it efficiently removes metal wear particles and contaminant impurities from turbine oil to maintain oil cleanliness in the tank and protect precision components such as turbine bearings. As a domestic replacement filter element, it fits the lubrication pipeline of steam turbines.

Product Advantages

✅ Premium glass fiber media with high dirt holding capacity and stable filtration accuracy for long-term purification of turbine oil

✅ Thickened perforated metal frame, robust structure, resistant to pressure difference and oil flow impact

✅ Stable sealing performance to prevent oil bypass and guarantee filtration effect

✅ Strictly matched OEM installation dimensions, excellent interchangeability and convenient on-site replacement

✅ Suitable for long-term continuous operation conditions in power plants, reducing unit failure risks

Technical Parameters

· Filtration Accuracy: 40μm

· Filter Media: Glass fiber with perforated metal support sleeve

· Seal: Oil-resistant nitrile rubber sealing ring

· Applicable Media: Turbine oil, lubricating oil

· Nominal Pressure: ≤1.6MPa

· Implementation Standard: GB/T 14041, Hydraulic filter element performance test method

Application Scope

Mainly used for the lubrication system of steam turbine main oil tanks in thermal power plants to filter solid particulate impurities in turbine oil. It can also be applied to large oil stations and lubricating oil purification for large rotating equipment. It keeps the oil circuit of the unit clean and protects precision components such as bearings and bearing bushes.
