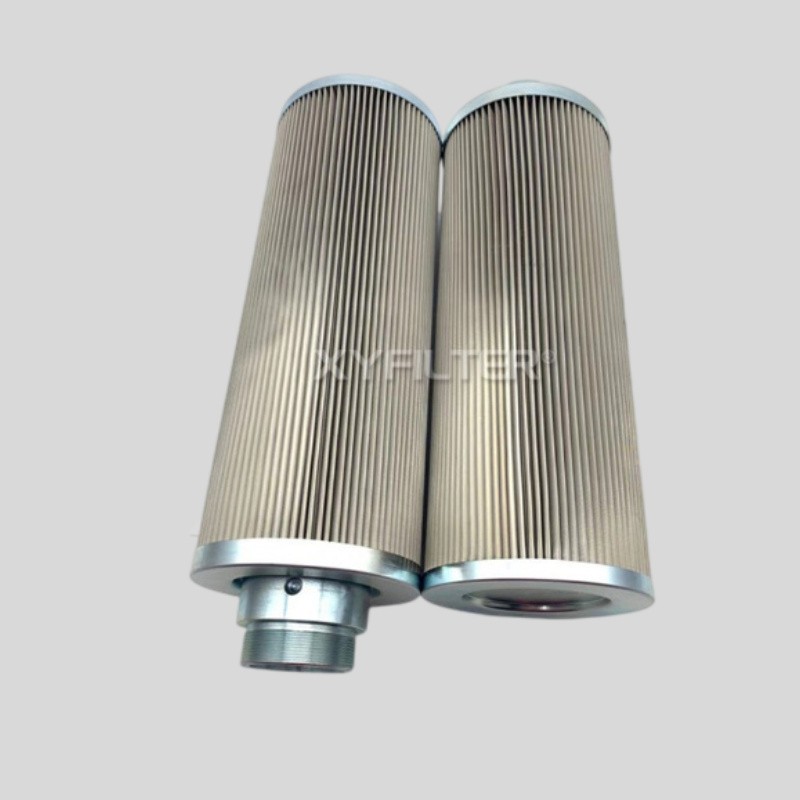

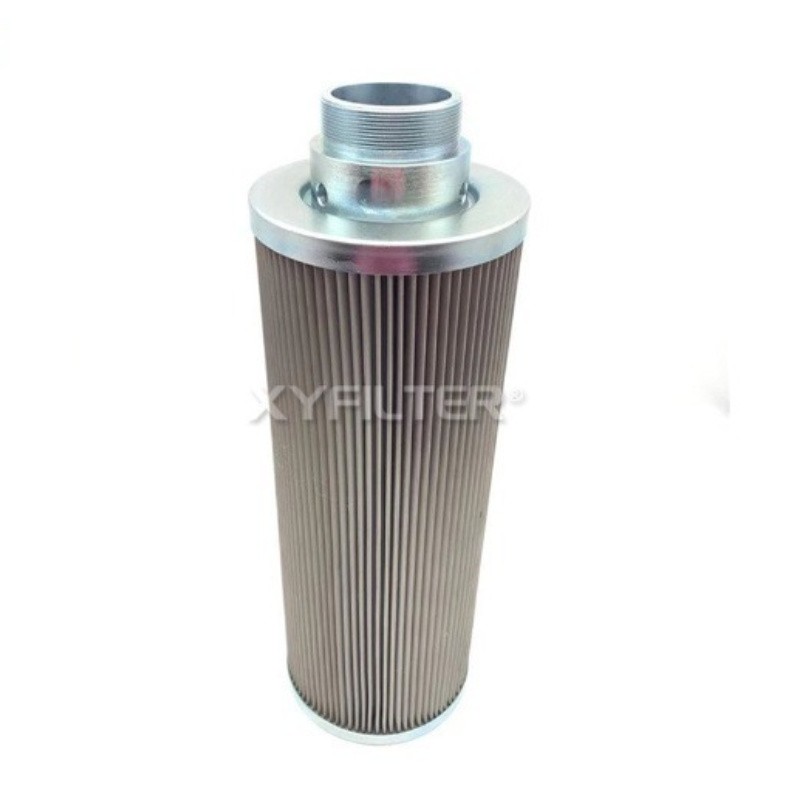

SY-LXKF-100BX7F Hydraulic Oil Return Filter Element

Product Introduction

SY-LXKF-100BX7F is the matching filter element for LXKF-100B return filter. Equipped with 7μm pleated glass-fiber media, it removes metal wear debris, oil sludge and other impurities from hydraulic oil and lubricating oil to protect precision hydraulic components. With matched interface for direct replacement, it is widely applied in power plants, steel mills and various industrial hydraulic-lubrication stations.

Specifications

· Filtration Accuracy: 7 μm

· Filter Media: Composite glassfiber

· Seal: Oil-resistant rubber gasket

· Compatible Fluid: Hydraulic oil, lubricating oil

· Nominal Flow Rate: 100 L/min

· Maximum Allowable Differential Pressure: 0.35 MPa

· Operating Temperature: -25℃～100℃

· Support Core: Inner stainlesssteel skeleton

Product Advantages

Composite glass-fiber media delivers high dirt-holding capacity and stable filtration efficiency. Thickened stainless-steel core withstands differential pressure with no fiber shedding. Pleated structure provides excellent oil flow capacity. Tight sealing prevents bypass leakage. Interchangeable dimensions enable easy assembly and disassembly. Domestic spare parts shorten delivery lead time.

Application Fields

It is used for return-line filtration of industrial hydrauliclubrication stations in power plants, steel mills, construction machinery and machine tools, acting as a replacement spare part for LXKF-100B return filter.
