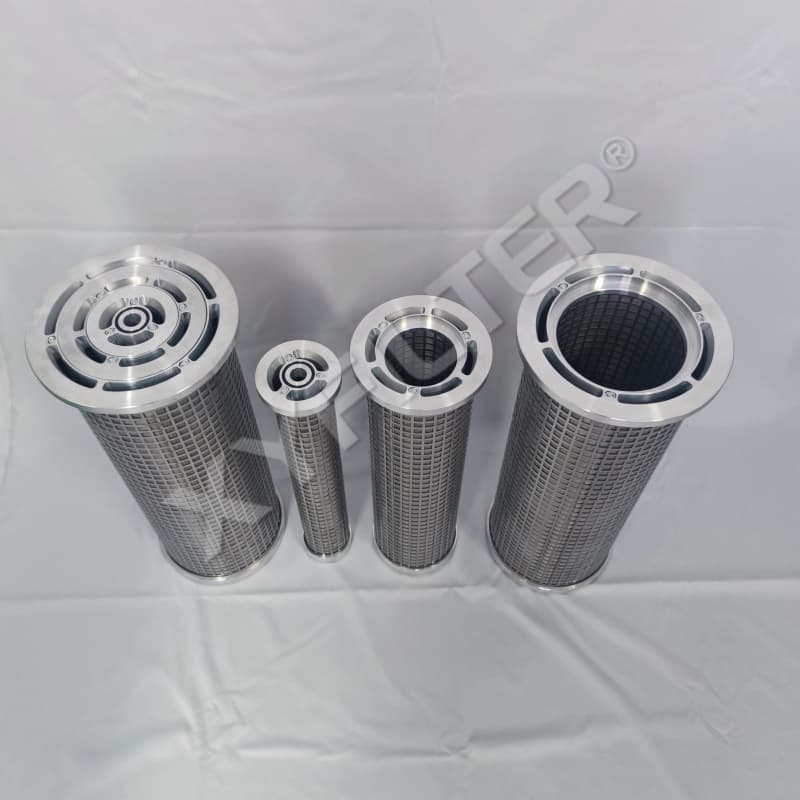

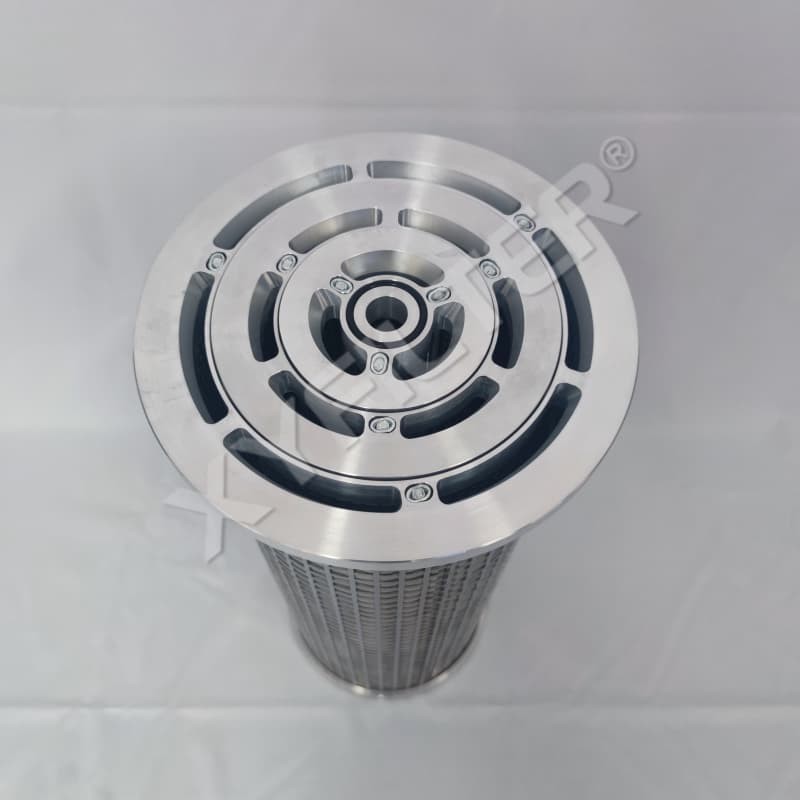

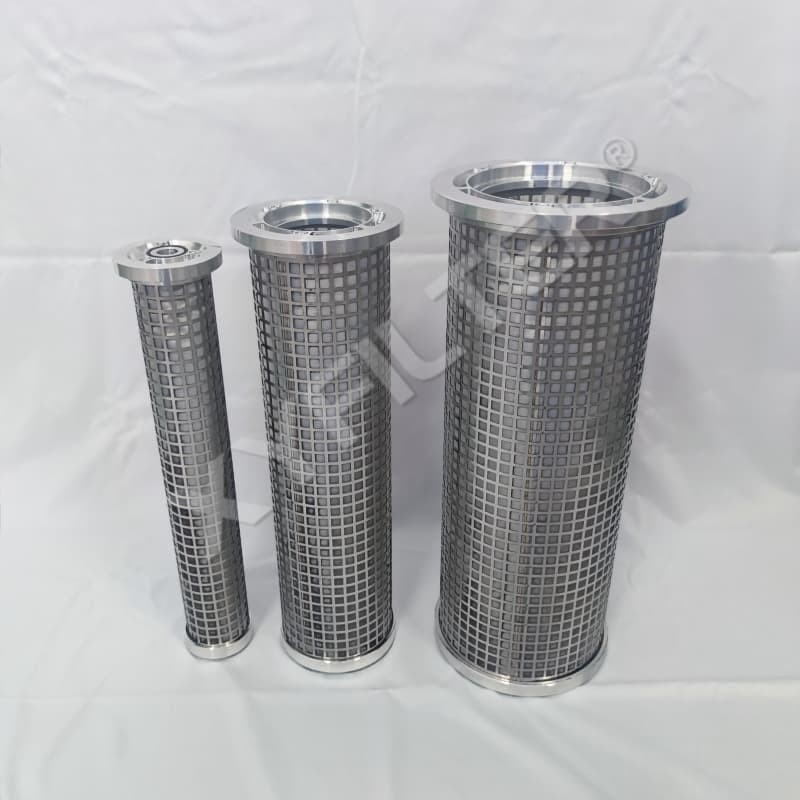

LY38/25 Triple Filter Element, Special for Oil Purifier, Coalescing Separation Filter for Turbine Oil & Hydraulic Oil

Product Introduction

LY38/25 triple filter element is an integrated spare part for LYseries oil purifiers. It combines coarse filtration, coalescing and separation processes to remove water, metal particles and oil sludge, improving oil cleanliness. Direct completeset replacement, suitable for purification of industrial oils such as turbine oil and hydraulic oil.

Specifications

· Filter Media: Composite coalescingseparation media, filter media

· Fluid Media: Turbine oil, hydraulic oil, transformer oil and other industrial oils

· Sealing: OEMcompatible structure (rubber seal)

· Nominal Flow Rate: 38L/min

· Working Pressure: 0.6MPa

· Max. Differential Pressure: 0.3MPa

· Operating Temperature: 2070℃

Advantages

· Integrated triplecartridge design for simultaneous water removal and impurity filtration

· Gradient composite media with excellent coalescing & oilwater separation performance

· Highstrength support core, impactresistant, no fiber shedding

· Interchangeable complete set, easy installation, low assembly error risk

Application Fields

For dehydration and impurity removal of turbine oil for steam turbines, transformer oil and hydrauliclubricating oil in power plants; serves as replacement spare part for LYseries oil purifiers in industrial & mining sites.
