01E 631 80G 16 S1 P Stainless Steel Mesh Filter Element, Cleanable Pleated Filter for Power & Steel Mill Oil Stations

Product Introduction

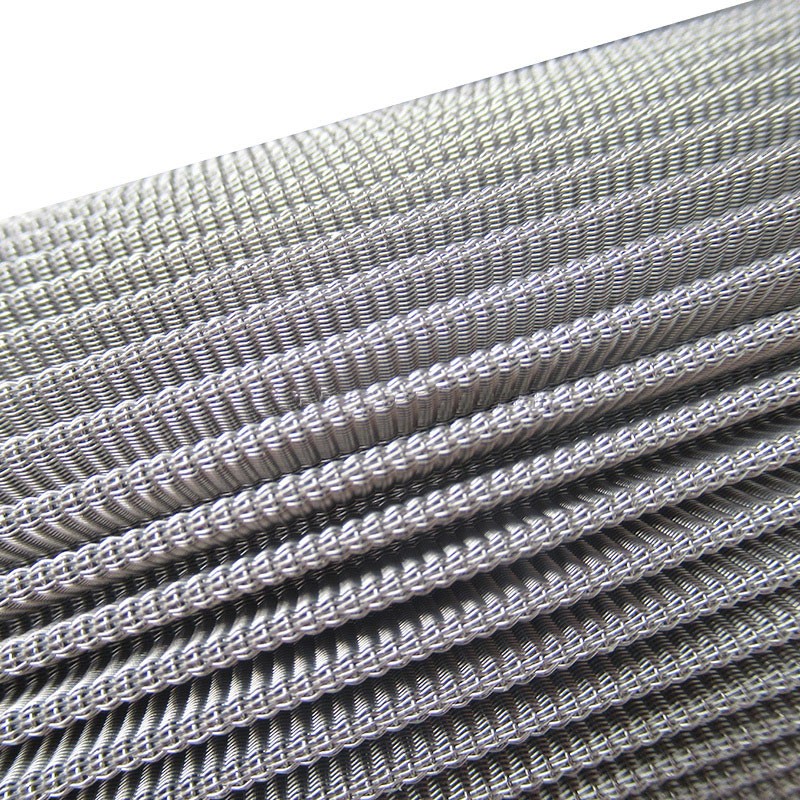

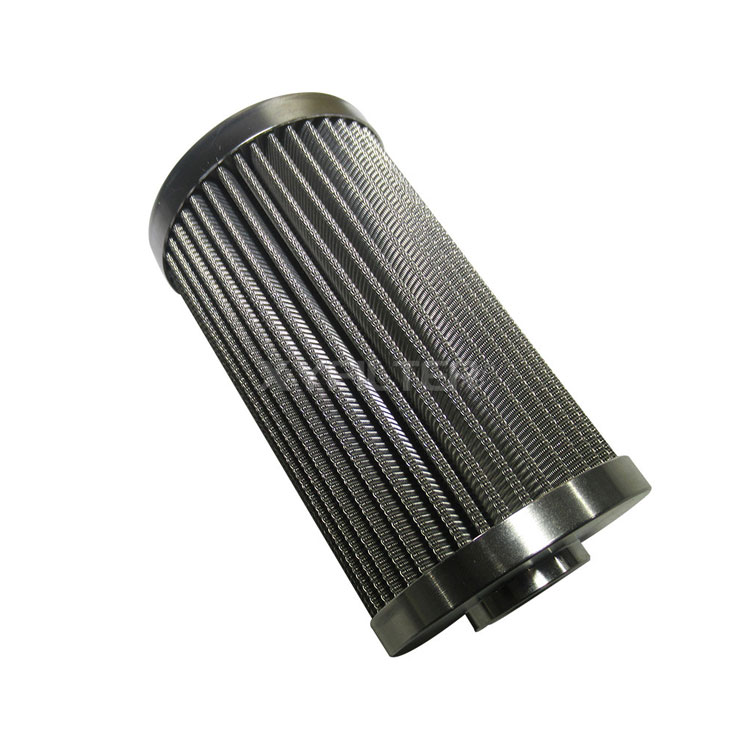

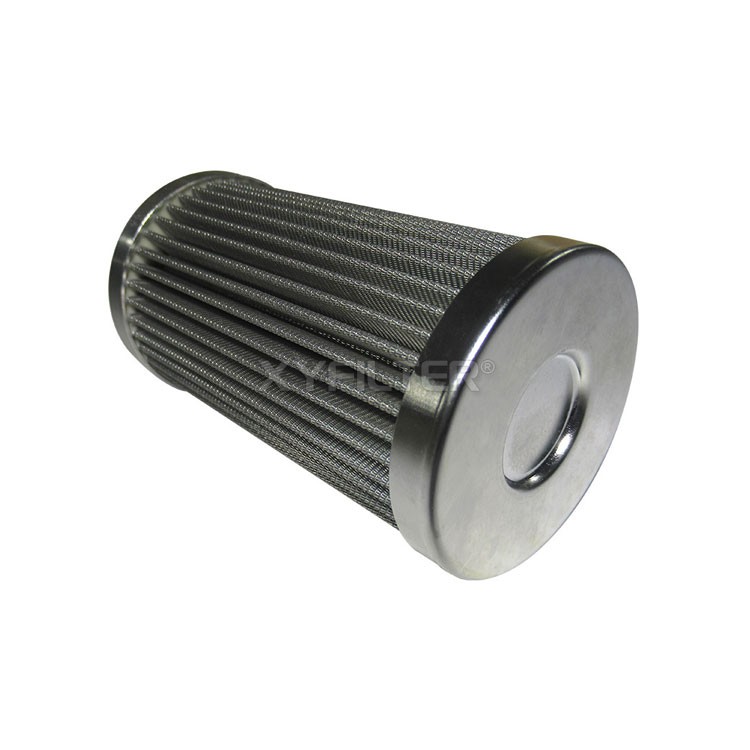

01E 631 80G 16 S1 P pleated stainlesssteel mesh filter element is applied to lubeoil stations and hydrauliclubrication systems in power plants and steel mills. It traps metal debris and particulate contaminants. Allmetal construction enables cleaning & reuse. Suitable for hightemperature and highdirt conditions, direct replacement for original filter.

Specifications

 Filtration Rating: 80G  Filter Media: Multilayer stainless steel woven mesh  Sealing: Matched sealing structure  Fluid Media: Hydraulic oil, turbine oil, lubricating oil  Nominal Pressure: 1.6 MPa  Max. Allowable Differential Pressure: 0.4 MPa  Operating Temperature: 30℃～120℃  Structure: Stainlesssteel core & end caps, cleanable & regenerable

Advantages

1. Stainlesssteel woven mesh, hightemperature & corrosion resistant, cleanable for repeated use

2. Allmetal structure, impact & differentialpressure resistant; no fiber shedding, no secondary oil contamination

3. Pleated design for large filtration area, high flow capacity and low initial pressure drop

4. Stainlesssteel core and end caps, antiaging and anticorrosion

Application Fields

Used for turbine lubeoil stations in power plants, hydrauliclubrication stations in steel mills and large gearbox oilsupply filtration. Fits hightemperature and highcontamination hydraulic systems as replacement spare part for corresponding filters.
