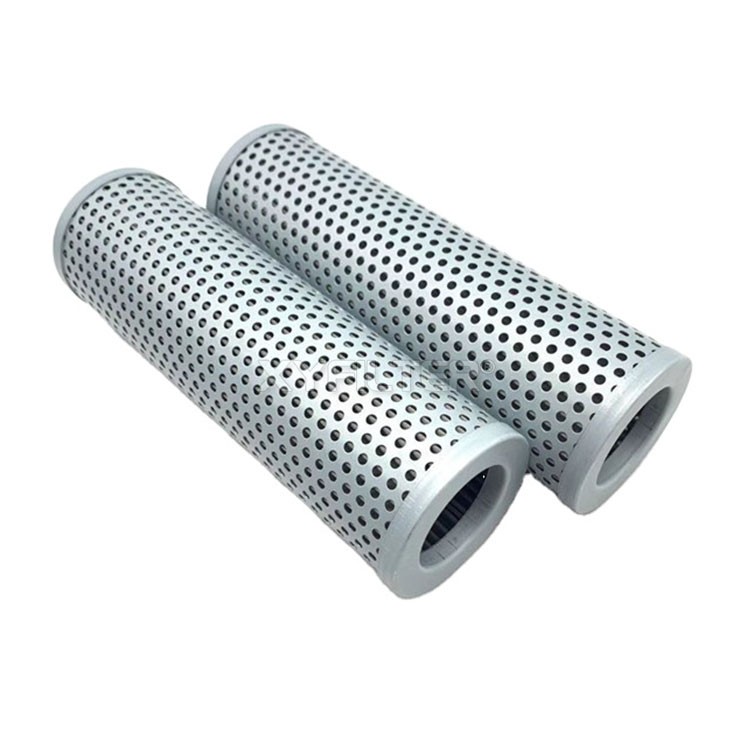

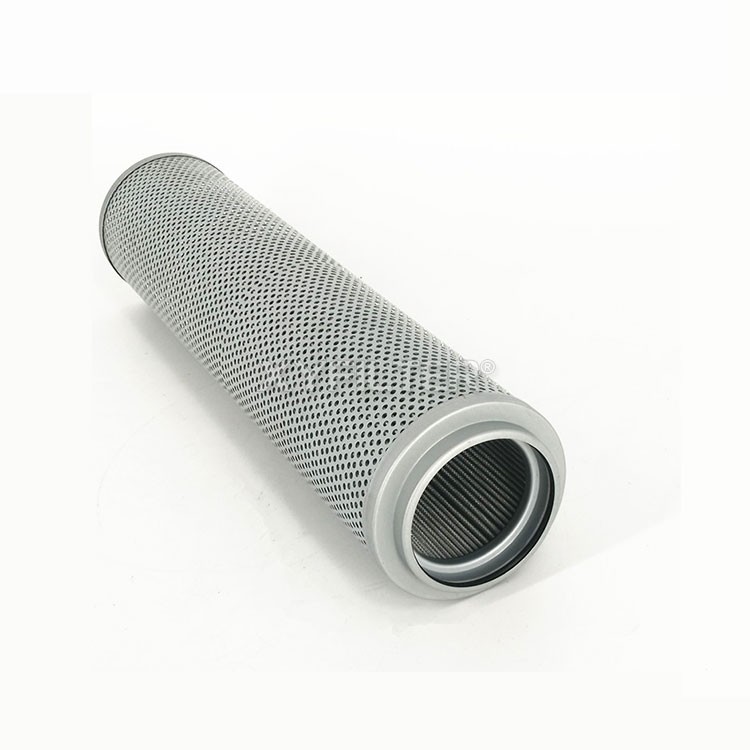

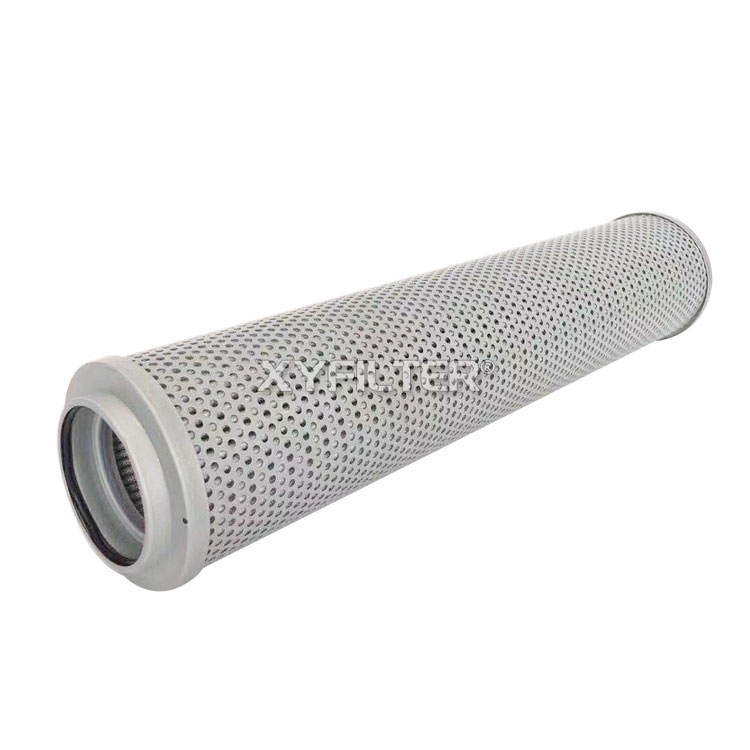

BLYLX‑502(1300R) Glass Fiber Pleated Hydraulic Filter Element, High Flow Filter Cartridge for 1300R Filter

BLYLX‑502(1300R) high‑flow glass‑fiber pleated hydraulic filter element is compatible with 1300R series filters. It removes metal particles and sludge from hydraulic and lubricating oil to protect oil pumps and hydraulic valves. Direct OEM‑interchangeable for continuous high‑flow hydraulic‑lubrication conditions.

Product Introduction

BLYLX‑502(1300R) high‑flow glass‑fiber pleated hydraulic filter element is compatible with 1300R series filters. It removes metal particles and sludge from hydraulic and lubricating oil to protect oil pumps and hydraulic valves. Direct OEM‑interchangeable for continuous high‑flow hydraulic‑lubrication conditions.


Specifications

‑ Filtration Rating: 20μm

‑ Filter Media: Composite glass fiber

‑ Sealing: Oil‑resistant sealing gasket

‑ Fluid Media: Anti‑wear hydraulic oil, industrial lubricating oil, turbine oil

‑ Nominal Flow Rate: 1300L/min

‑ Nominal Pressure: 1.6MPa

‑ Max. Allowable Differential Pressure: 0.35MPa

‑ Operating Temperature: ‑25℃~100℃

Advantages

Gradient glass‑fiber media with high dirt‑holding capacity, long service life under high‑flow conditions

Large pleated filtration area, low initial pressure drop, excellent oil flow performance

Reinforced stainless‑steel inner core, differential‑pressure & shock resistant, no fiber shedding

Reliable oil‑resistant gasket prevents fluid bypass and leakage

Application Fields

Applied to high‑flow hydraulic‑lubrication stations of power plants and steel mills, heavy‑duty mining machinery and large reducer systems, serving as replacement spare part for 1300R series pipeline and return‑line filters.
