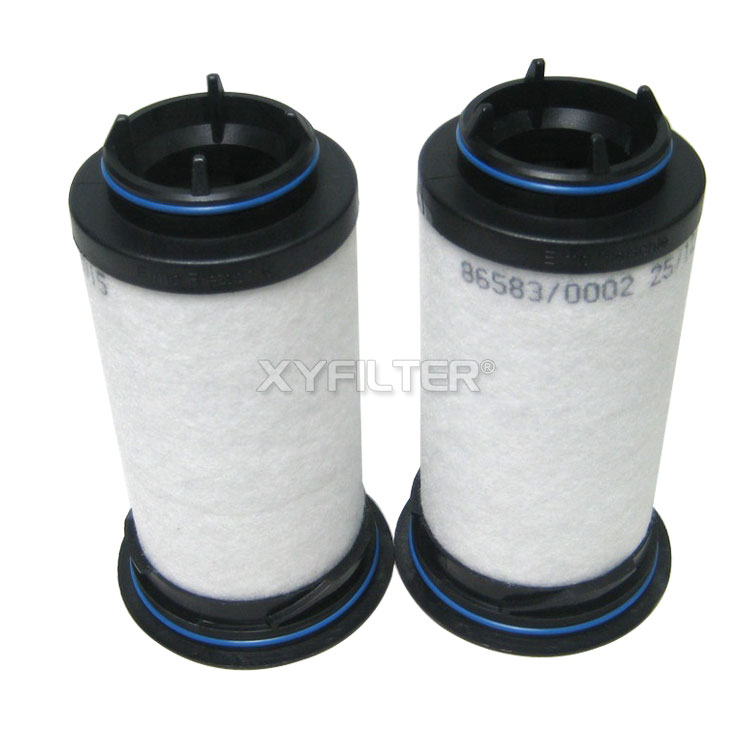

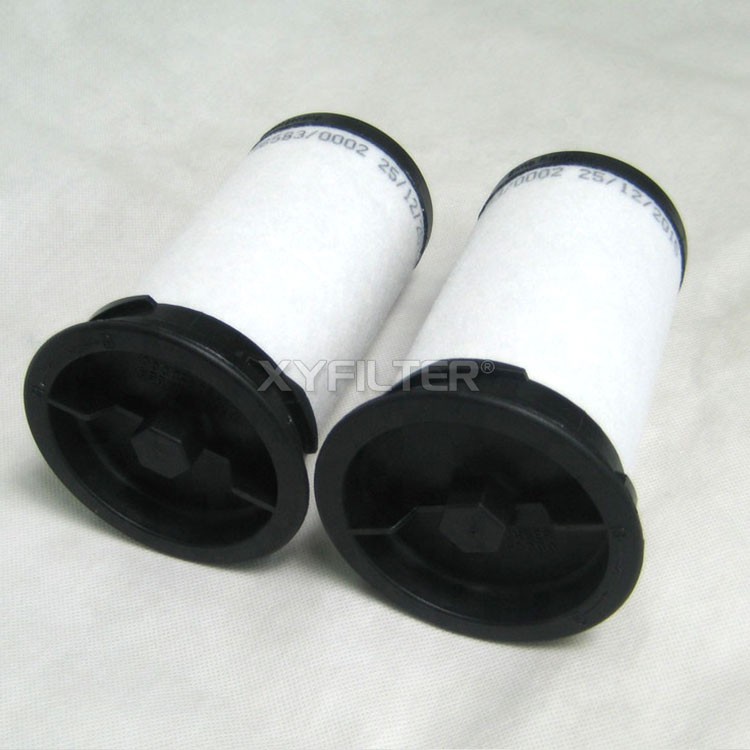

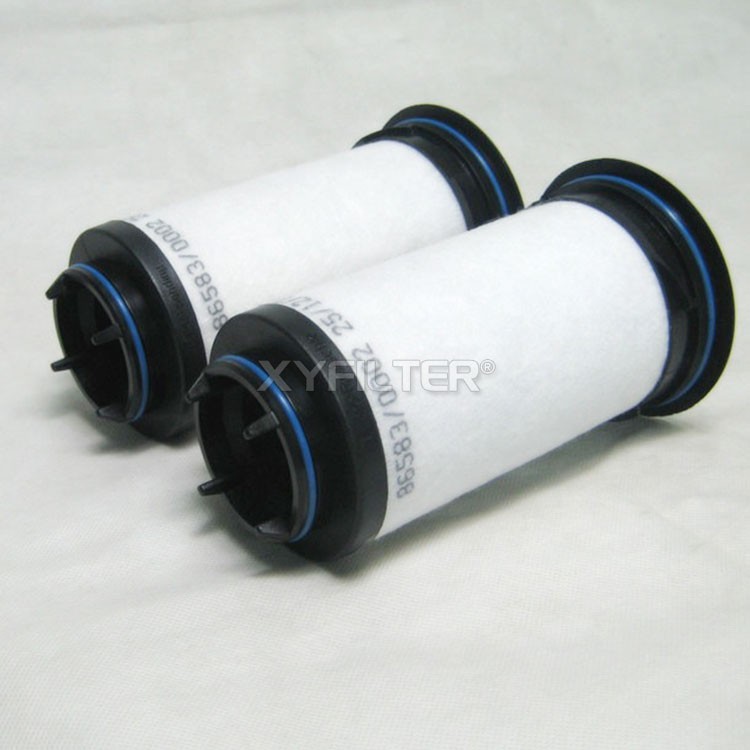

731468 Oil Mist Separator Filter, Fits Rietschle VC100 Vacuum Pump, Exhaust Filter 154530/0001

Product Introduction

731468 oil mist separator is an exhaust filter spare part for Rietschle vacuum pumps, cross reference 154530/0001. Suitable for VC100 and other rotary vane pumps. It captures exhaust oil mist and returns oil to pump chamber to solve oil spitting and fume issues. Universal interface for direct OEM replacement.

Specifications

· Filter Media: Multilayer composite glass fiber

· Sealing: Oilresistant fluororubber gasket

· Outlet Oil Content: ＜5ppm

· Operating Temperature: ≤75℃

· Initial Pressure Drop: ≤0.02MPa

· Rated Working Pressure: 0.3MPa

· Service Life: 30005000h (subject to working conditions)

· Process Medium: Vacuum pump oilgas mixture

Advantages

· Multilayer composite glass fiber, high oilgas separation efficiency, saves vacuum pump oil

· Oil & heat resistance, stable for continuous operation, no fiber shedding

· Integrated fluororubber seal, prevents oilgas bypass leakage

· Plugin structure for easy assembly and maintenance

Application Fields

Designed for Rietschle VC50/VC75/VC100/VC150 oillubricated rotary vane vacuum pumps, widely used in PCB, photovoltaic, pharmaceutical, packaging and metallurgy industries, as replacement for original 731468 and 154530/0001 filter elements.
