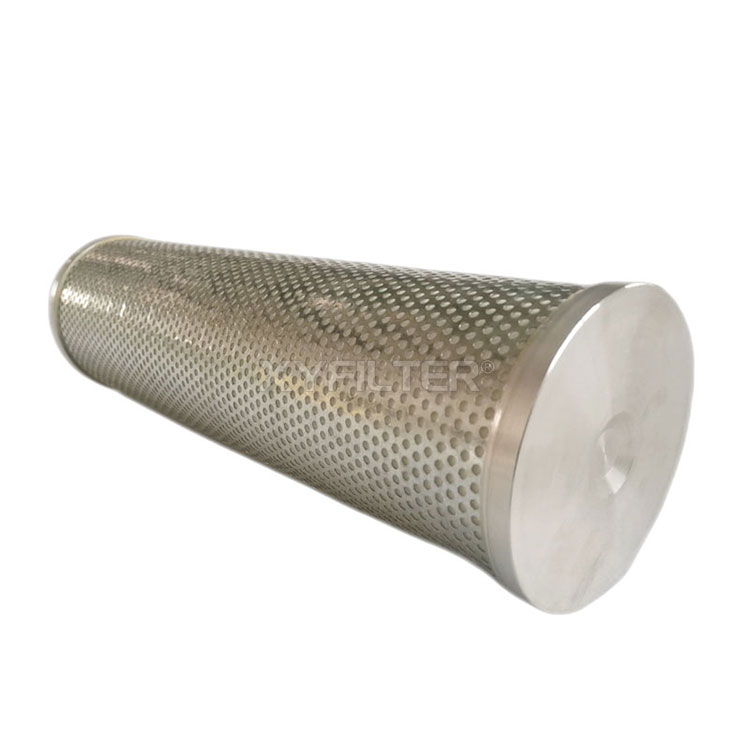

HQ25.200.16Z Cellulose Filter Element

Product Introduction

HQ25.200.16Z cellulose filter element is a filter component for the outlet of turbine main oil pump. With composite cellulose media and stainless steel support frame, it efficiently removes particulate impurities in turbine oil. It maintains stable pressure difference and large dirt holding capacity to keep the lube oil circuit clean for power plant turbine oil systems.

Technical Parameters

· Filtration Accuracy: 10μm

· Filter Media: Composite cellulose media, 304 stainless steel inner & outer support mesh

· Seal: Nitrile rubber (NBR) seal

· Medium: Turbine oil, general hydraulic oil, phosphate ester hydraulic fluid

· Nominal Pressure: 1.6 MPa

· Executive Standard: GB/T 14041 Performance standard for hydraulic filter elements

Product Advantages

1. Large dirt holding capacity, long service life

2. Stable filtration efficiency, low pressure drop

3. High-strength support frame, impact resistant & non-deformable

4. Oil-resistant seal, leak-proof

Application Field

It is mainly applied to the outlet of steam turbine main oil pump in power plants to purify particulate contaminants in turbine lubrication oil system.
