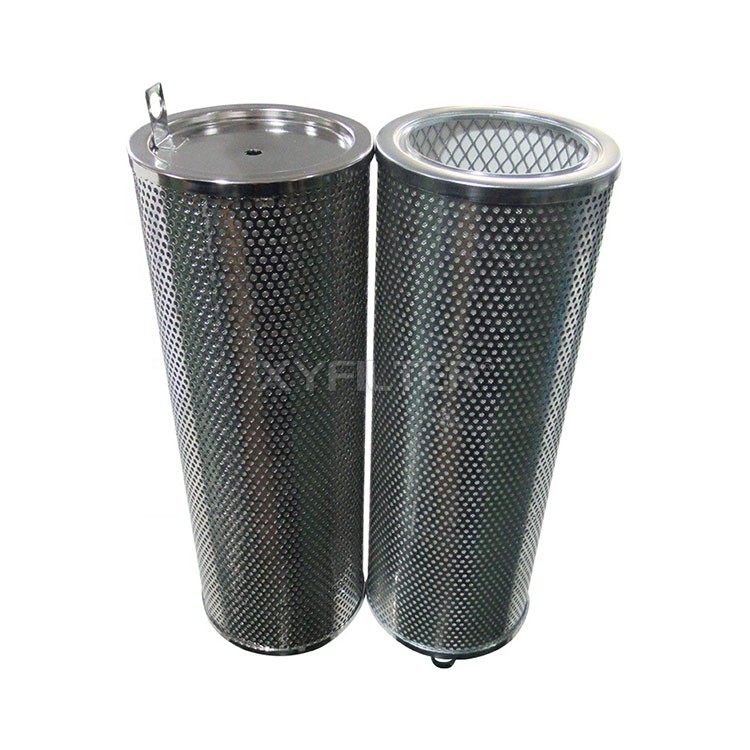

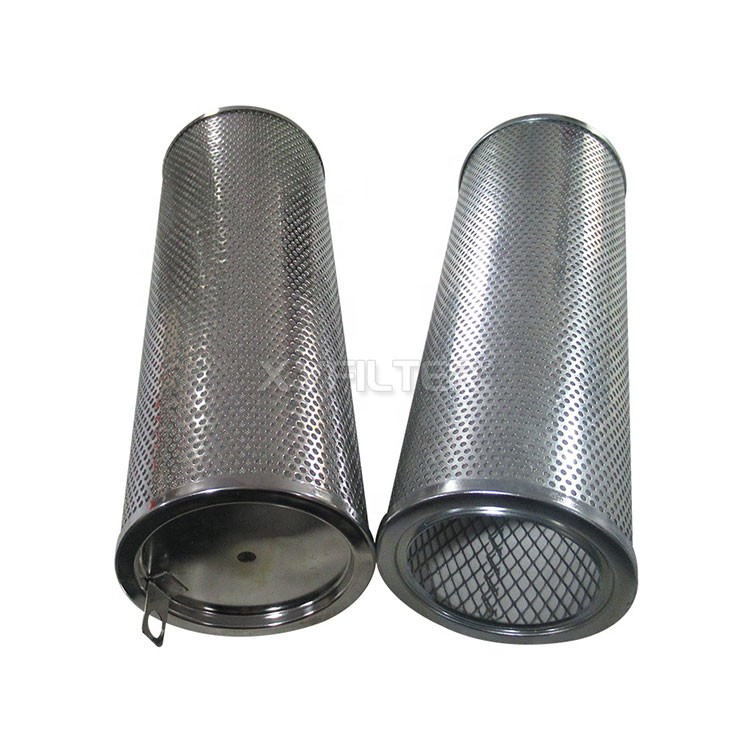

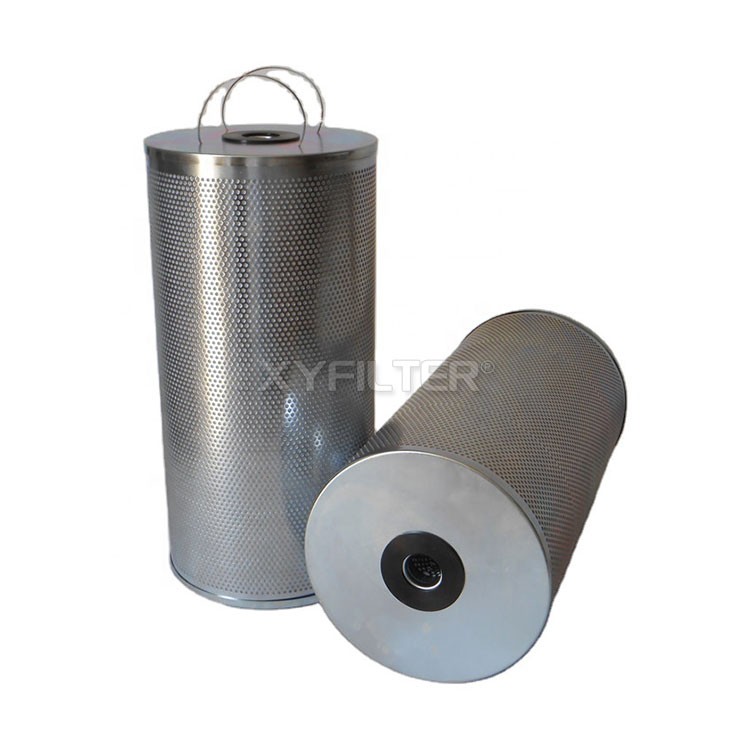

HQ25.300.20Z Ion Exchange Resin Filter Element

Product Introduction

HQ25.300.20Z ion exchange resin filter element is a special purification component for power plant oil systems. Adopting high-performance ion exchange resin with robust support structure, it efficiently removes acid components, colloids and trace pollutants from fire-resistant oil, inhibits oil degradation and ensures stable operation of hydraulic systems.

Technical Parameters

· Filtration Accuracy: 20μm

· Filter Media: High-strength ion exchange resin, anti-corrosion support mesh

· Seal: Oil & corrosion resistant nitrile rubber seal

· Medium: Phosphate ester fire-resistant oil, industrial hydraulic oil

· Nominal Pressure: 3.0MPa

Product Advantages

· Excellent acid removal & decolorization, strong purification capacity

· Stable adsorption performance, long service life

· Pressure and corrosion resistant, not easy to deform or damage

· Tight seal to prevent leakage

Application Field

It is mainly used in steam turbine fire-resistant oil systems of power plants to remove acid substances and impurities in oil for oil purification and regeneration.
