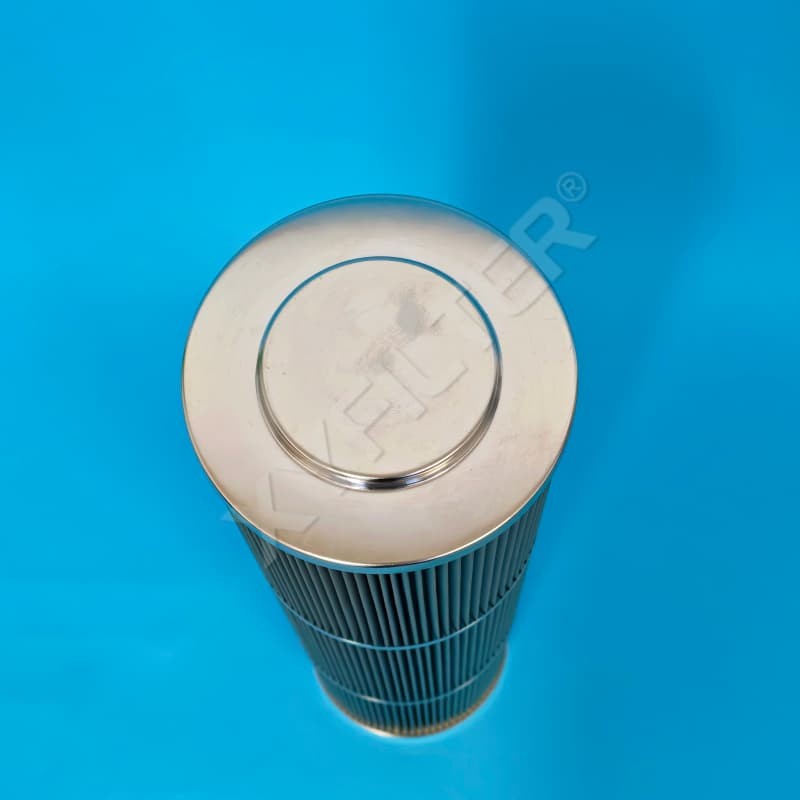

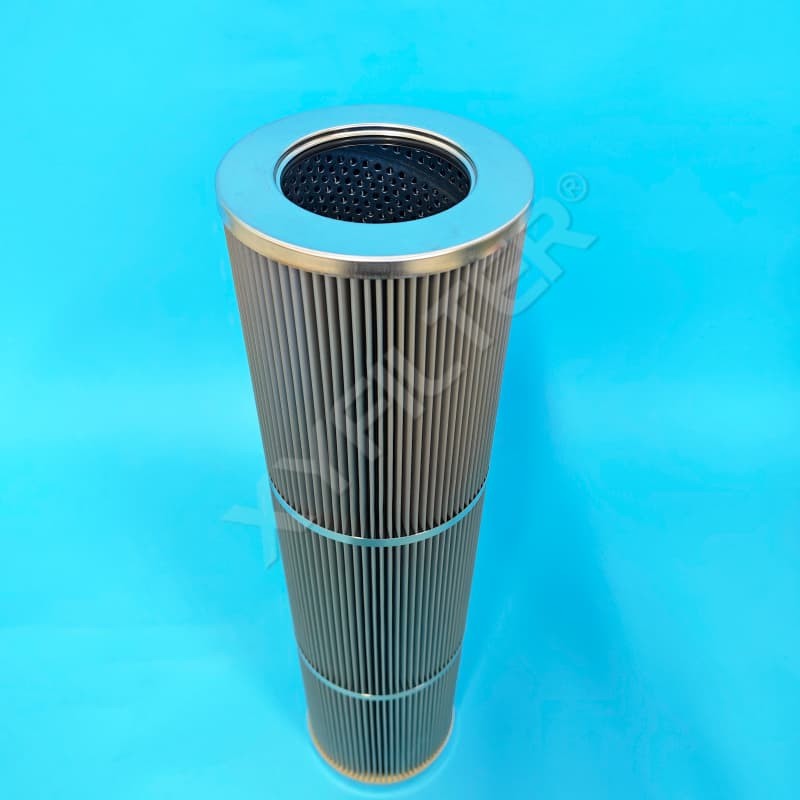

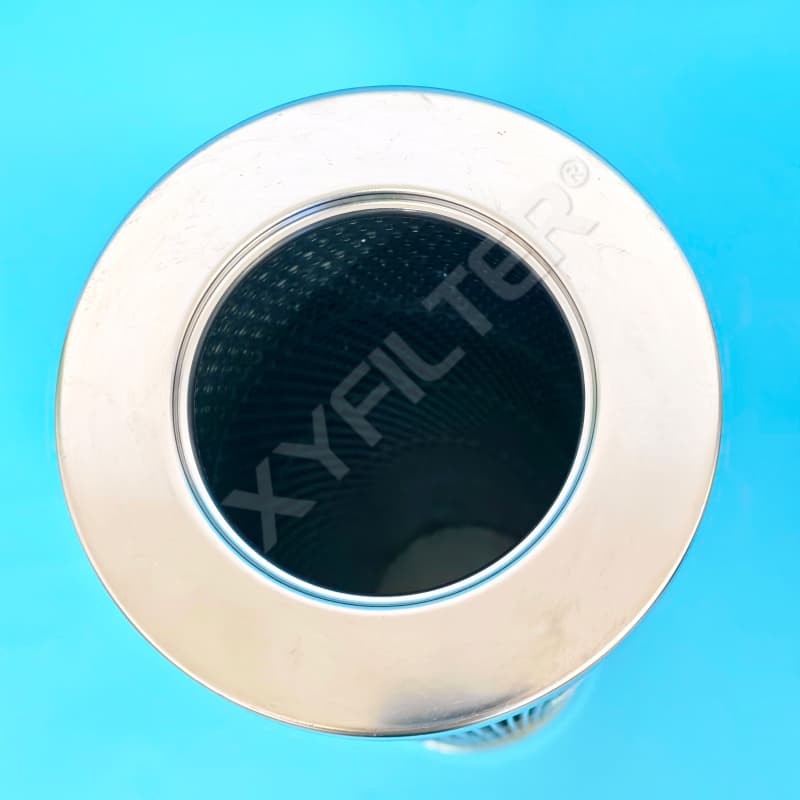

FRD.M5SE.31G Hydraulic Oil Filter Element

Product Introduction

FRD.M5SE.31G hydraulic oil filter element is a replacement hydraulic filter component. It features pleated filter media for oil purification in hydraulic systems, capturing solid impurities in hydraulic oil and safeguarding precision parts including hydraulic valves and pump bodies. Xinyuan Environmental Protection supports custom manufacturing.

Technical Parameters

· Model: FRD.M5SE.31G

· Filtration Accuracy: 5μm

· Filter Media: Glass Fiber / Stainless Steel Woven Mesh

· Operating Temperature: -25℃ ~ 110℃

· Maximum Allowable Differential Pressure: 1MPa

· End Cap: Galvanized Metal / Stainless Steel End Cap

Product Advantages

1. Pleated filter layers with high dirt holding capacity and long service life

2. Excellent pressure resistance; filter layers resist deformation and damage

3. Reliable sealing, simple installation and replacement, matches original filter dimensions

4. Stable filtration efficiency, effectively maintains oil cleanliness

Application Fields

Used for return line and pressure line filtration in hydraulic oil systems of power plants, steel mills, construction machinery, hydraulic lubrication stations, wind power equipment and other facilities.
