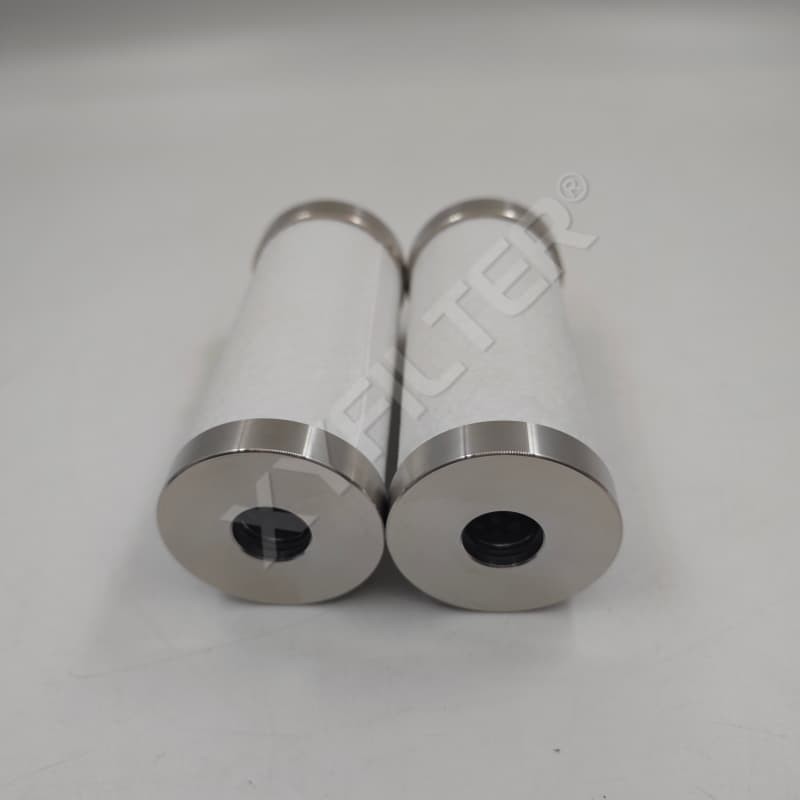

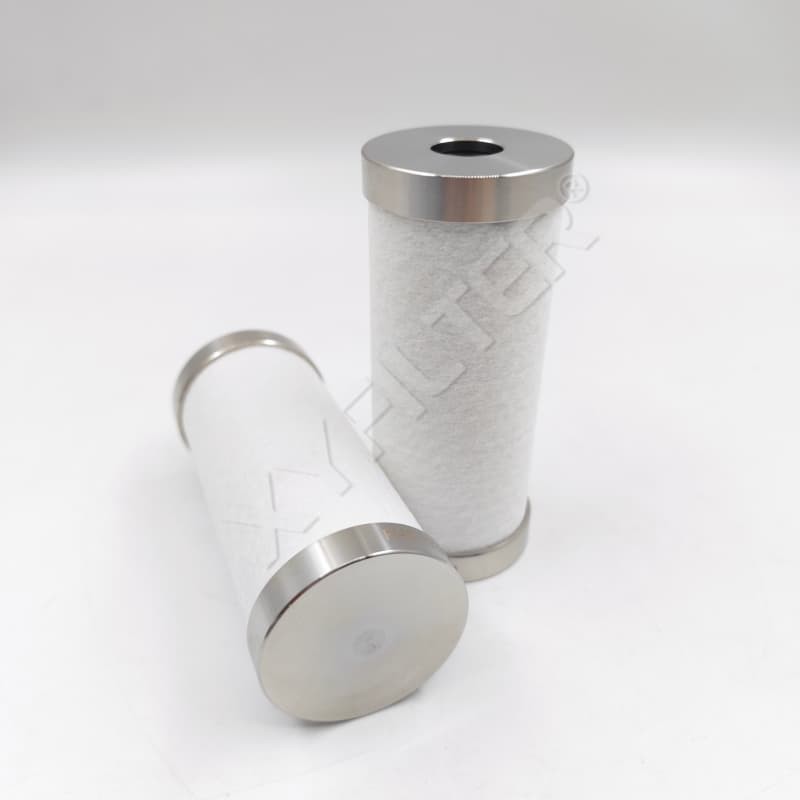

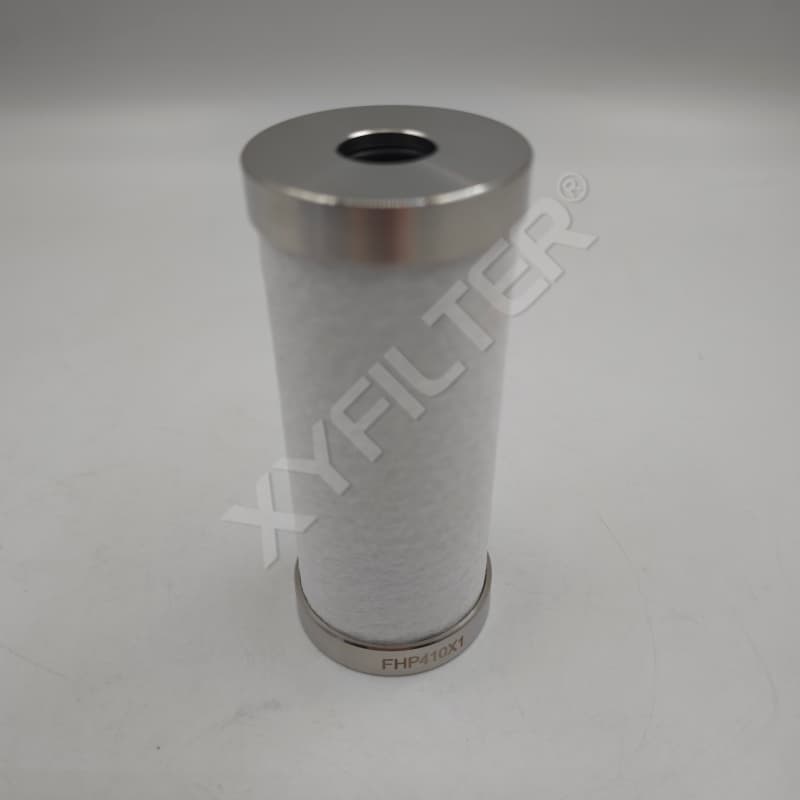

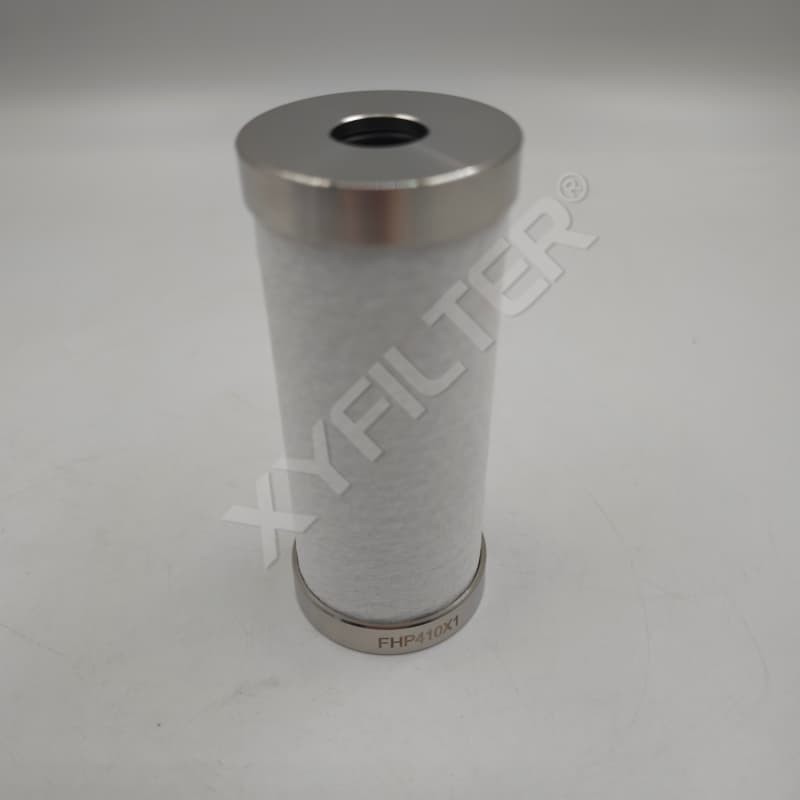

FHP410 Series Precision Filter Elements

The FHP410 series precision filter elements are precision filtration elements for compressed air. Featuring composite filter media and stainless steel end caps, they are used for water removal, oil removal and dust removal downstream of air compressors to protect downstream pneumatic equipment, and can directly replace original filter elements.

Product Introduction


Technical Parameters

· Models: FHP410X25, FHP410XA, FHP410X1

· Filtration rating: X25 (25 μm), XA (activated carbon oil removal), X1 (1 μm)

· Filter media: Fiberglass / activated carbon composite media

· End caps: Stainless steel

· Working pressure: ≤ 1.0 MPa

· Working temperature: ≤ 80 ℃

Product Advantages

1. Multi-stage filtration to meet various requirements for dust, oil and water removal

2. Highly permeable filter media with low pressure drop

3. Stainless steel end caps — corrosion resistant with strong sealing performance

4. Universal dimensions for quick and easy replacement

Application Areas

Air compressor systems, pneumatic equipment, spray painting, food & pharmaceutical industries, laser cutting and other compressed air purification scenarios.
